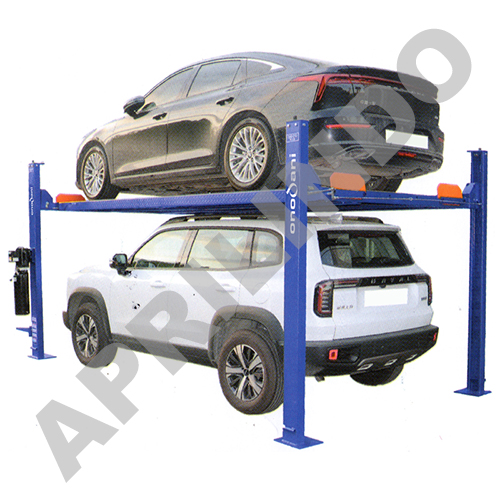

Onodani - ON-7436PL - Four Post Parking Lift

FEATURES

3.6 Ton Lifting capacity.
115mm height from the ground,effectively avoid chassis scratching.
4200mm/ 4622mm usable runway length, suitable for most vehicles .
Manual safety protection and steel wire rope broken protection inside top beam.
Anti-surge valve equipped to hydraulic cylinder connector.

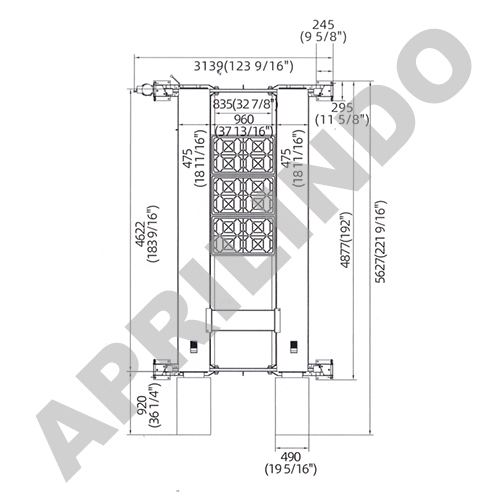

SPECIFICATIONS
Model No.	ON-7436PL
Lifting Capacity	3600kg	(8000lb5)
Lifting Time	≤50S
Lifting Height	2100mm	(82 11/16")
Overall Height	2280mm	(89 6/8")
Overall Length (Inc. Ramps)	5627mm	(221 9/16")
Overall Length (No Ramps)	4622mm	(181 15/16")
Overall Width	3139mm	(123 9/16")
Width Between Coluumns	2606mm	(102 5/8")
Gross Weight	791 kg	(l,744LBS)
