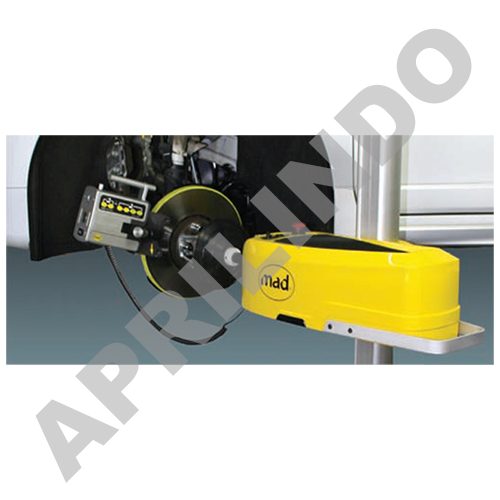

MAD - DA2002 - Brake Disc Aligner
FEATURES
- Powerful Drive Unit
- Ergonomic design
- Continuously variable speed rate
- Easy height adjustment
- Durable Dutch design
- More stability due to four wheels
- Modular storage facility for disc lathe and tools
- Electronic Disc Lathe
- Quick mounting of Disc Lathe
| TECHNICAL SPECIFICATION | ||
| Performance specifications | ||
| Run-out/Disc oscillation | < 20 μm | |
| Disc Thickness variation | < 20 μm | |
|
Surface roughness/finish |
< 2 μm | |
| Max. brake disc thickness | 41 mm | |
| Max. depth of cut | 0,8 mm pro bit | |
| Incremental cutting scale | 0.05 mm. per click | |
| Disc Lathe DL2002 | ||
| Autofeed 1 | 6 mm/min. | |
| Autofeed 2 | 12 mm/min. | |
| < > | 50 mm/min | |
| << >> | 475 mm/min. | |
| Drive Unit DU2010 | ||
| Rotation speed | 80 - 160 rpm | |
| Working height DA2002 | 450 - 1250 mm | |
| Electrical Data | DL2002 | DU2010 |
| Voltage | 36 VDC | 100-240V. Freq. 50/60 Hz. |
| Current | max. 1.3 A | 2,4 / 3 A |
| Power | 70 W | 0,55 kW |
| Torque | 65 Nm | |
| Weight | 7,5 kg | 60 kg |
| Colours | Black RAL 9005/Yellow RAL 1003 | |
